High-Rate AAA 900mAh NiMH Cells for Competition RC Racing Modification

Developed for European RC racing parts suppliers and professional modification teams, our AAA 900mAh 1.2V high-discharge NiMH cells are built to handle sustained high-current loads from modified RC car motor systems. The cell adopts a thin electrode structure and dual-tab design, delivering stable 3A continuous discharge with lower voltage sag under full throttle, compared to standard consumer-grade AAA cells.

All production follows IEC61951-2 standards, with 100% automated cell sorting before shipment. We supply both bare cells and custom assembled packs, supporting small-batch OEM orders for racing-specific product lines. Full export documentation including RoHS, REACH and UN38.3 is available for Swiss and EU customers.

Core Specs at a glance: 1.2V nominal | 900mAh rated capacity | 3A max continuous discharge | ≤35mΩ internal resistance | dual 0.15mm pure nickel tabs

Why Standard AAA Cells Fail in RC Racing Use

Most off-the-shelf consumer AAA NiMH cells are designed for low-drain devices like remote controls and electric toothbrushes, and show obvious performance degradation when used in high-speed RC cars:

Severe voltage sag under acceleration: Typical consumer cells only support 0.5–1A continuous discharge. Under full-throttle motor burst, voltage drops quickly below 1.0V, resulting in sluggish throttle response and reduced top speed.
Overheating during long races: Single thin tab design creates higher contact resistance. After several minutes of continuous high-current output, cell surface temperature rises sharply, leading to capacity drop and shortened cycle life.
Poor pack consistency: Without strict resistance and capacity matching, cells in a series pack will drift apart after multiple high-rate cycles, causing premature discharge cutoff and uneven wear.
Welding failure under vibration: Ordinary spot welding joints can loosen or detach under constant chassis vibration from off-road and drift racing, leading to sudden power loss mid-race.

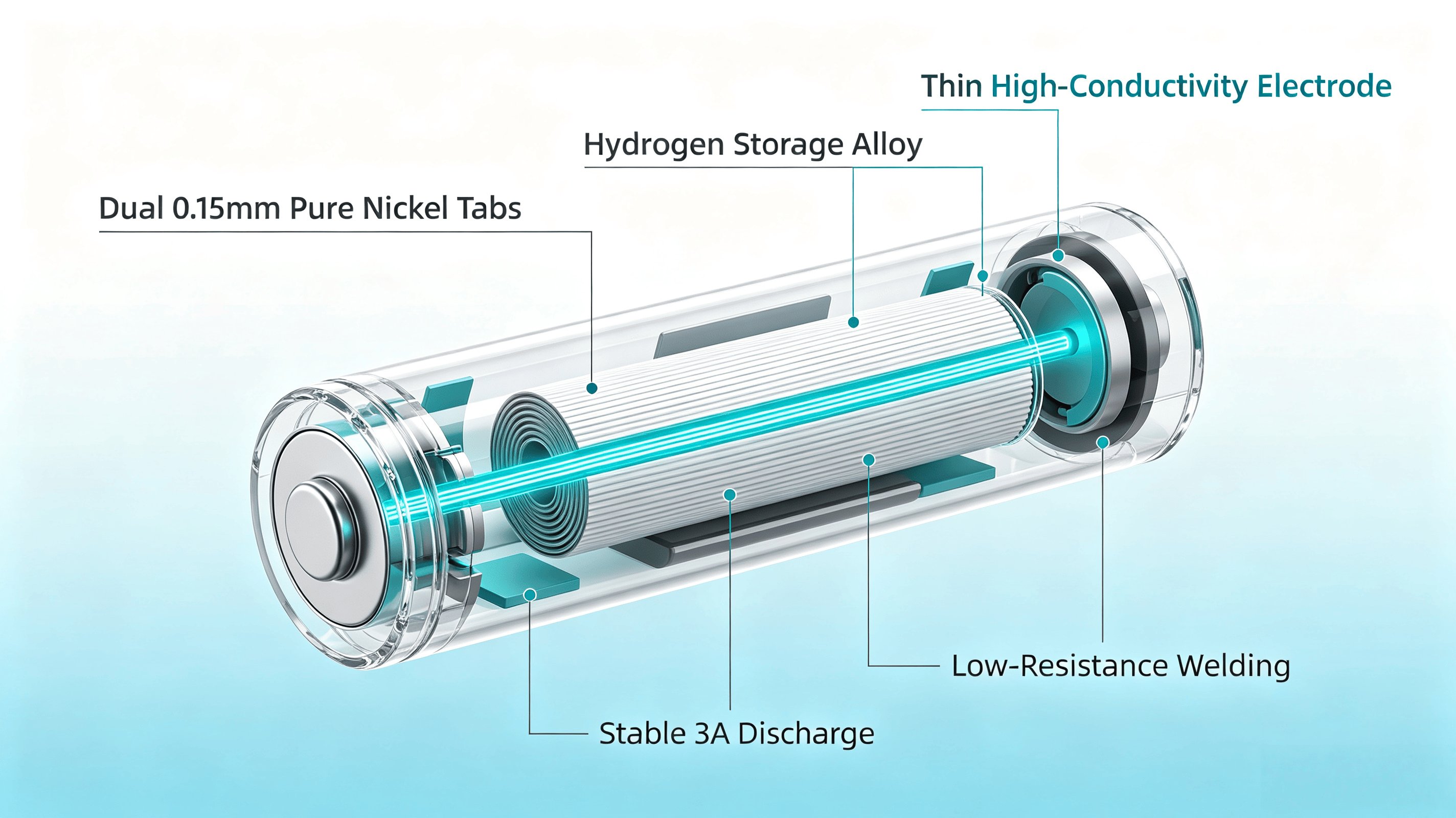

Design Optimizations for High-Rate RC Use

Every structural adjustment is validated with actual RC motor discharge profiles to deliver measurable performance gains on the track:

Thin Electrode & High-Conductivity Substrate

We use thinner foamed nickel electrode plates with higher surface area, which shortens ion migration path and reduces ohmic resistance under high current. In practical 3A discharge tests, the voltage platform stays above 1.1V for a longer period, giving drivers more linear power control during acceleration and drift.

Dual Symmetrical Nickel Tabs (≥0.15mm Pure Nickel)

Instead of a single thin tab, the cell uses two symmetrical pure nickel tabs with minimum 0.15mm thickness. This design splits the current path evenly, reduces localized heating, and improves current carrying capacity. Under 3A continuous discharge, tab temperature rise is controlled within a safe range, even during full-length race heats.

Precision Low-Resistance Welding Process

All tab-to-electrode connections are made with precision laser welding for full penetration and consistent low contact resistance. Weld joints maintain mechanical integrity under long-term vibration and thermal cycling, which is critical for off-road RC buggies and drift cars that experience constant chassis shake.

Automated Cell Matching & Sorting

Every cell goes through capacity grading and internal resistance testing before packaging. For pack assembly orders, we match cells within 5mV voltage difference and 2mΩ resistance difference, so the entire pack charges and discharges evenly. This consistency directly translates to longer pack life and more predictable performance lap after lap.

Full Electrical Specifications (AAA 900mAh High-Rate NiMH)

All parameters below are tested according to IEC61951-2:2017 standards at 20±5℃ ambient temperature, consistent with our official product datasheet.

Cell Model	Ni-MH AAA 900mAh High-Rate Cell
Nominal Voltage	1.2V
Rated Capacity (0.2C discharge to 1.0V)	900mAh (typical), 850mAh minimum
Maximum Continuous Discharge Current	3000mA (3A), ambient temp 10~40℃
Peak Discharge Current (10s)	4.5A (for short burst acceleration)
Internal Resistance (1kHz, fully charged)	≤ 35 mΩ per cell
Tab Specification	Dual symmetrical pure nickel tabs, ≥0.15mm thickness
Standard Charge Method	90mA (0.1C) for 16 hours, 0~40℃ ambient
Fast Charge Method	450mA (0.5C) with -ΔV=5mV termination, approx 2.4 hours
Trickle Charge	45mA (0.05C) max
Cycle Life (IEC standard)	≥ 400 cycles (remaining capacity ≥80% of initial)
Discharge Temperature Range	-10℃ ~ 55℃
Storage Temperature (40-60% charged)	-20℃ ~ 55℃ (<30 days) / -20℃ ~ 30℃ (<1 year)
Cell Dimensions	10.5mm diameter × 44.5mm height (with jacket)
Typical Weight	Approx 12.5g per cell
Certifications	CE, RoHS, REACH, UN38.3, IEC61951-2 compliant

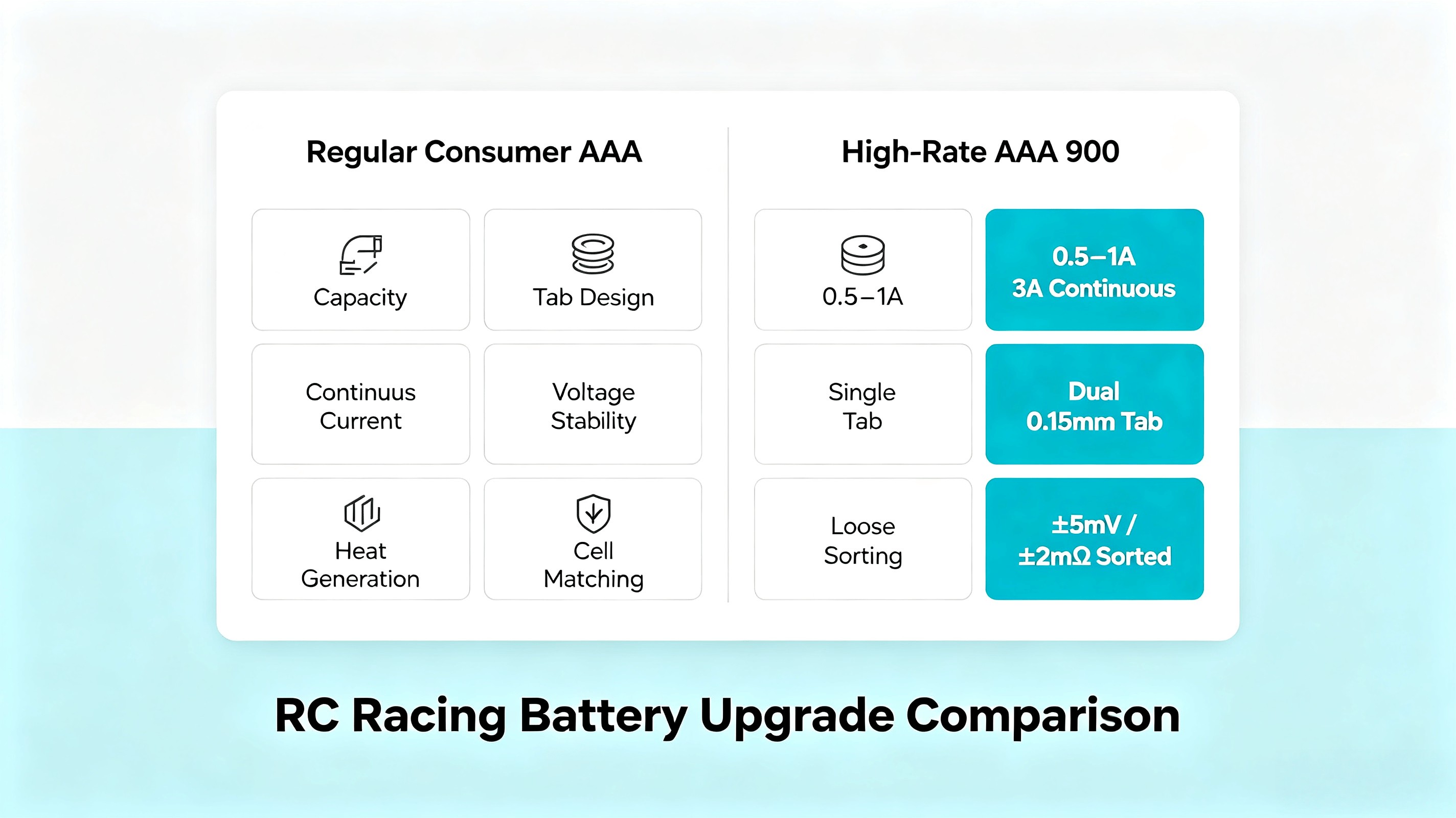

Standard Consumer AAA vs High-Rate Racing AAA Comparison

Parameter	Regular Consumer AAA	Our High-Rate AAA 900
Typical Capacity	800 – 1000mAh	900mAh (rated, 0.2C)
Tab Design	Single thin nickel tab	Dual 0.15mm pure nickel tabs
Continuous Discharge	0.5A – 1A max	3A continuous rated
Voltage @ 3A Discharge	Drops below 1.0V quickly	Stable platform above 1.1V
Heat Generation @ 3A	Severe, >60℃ surface	Controlled, <45℃ surface
Cell Matching Grade	Loose tolerance	±5mV / ±2mΩ sorted
Typical Use Case	Remote controls, small appliances	RC racing, high-drain motor drives

Typical RC Racing Applications

1/28 Scale Mini Drift Cars

Compact AAA packs fit narrow chassis. Stable 3A discharge maintains consistent motor output for precise drift throttle control.

Off-Road RC Buggies

Dual-tab laser welding resists chassis vibration. Low-sag discharge delivers reliable burst power for jumps and acceleration.

RC Rock Crawlers

Sustained medium-high current output supports long climbing sessions, with minimal heat buildup during slow high-torque runs.

Competition RC Tanks

Matched cell packs ensure symmetrical power delivery to dual drive motors, for straight-line tracking accuracy in competition.

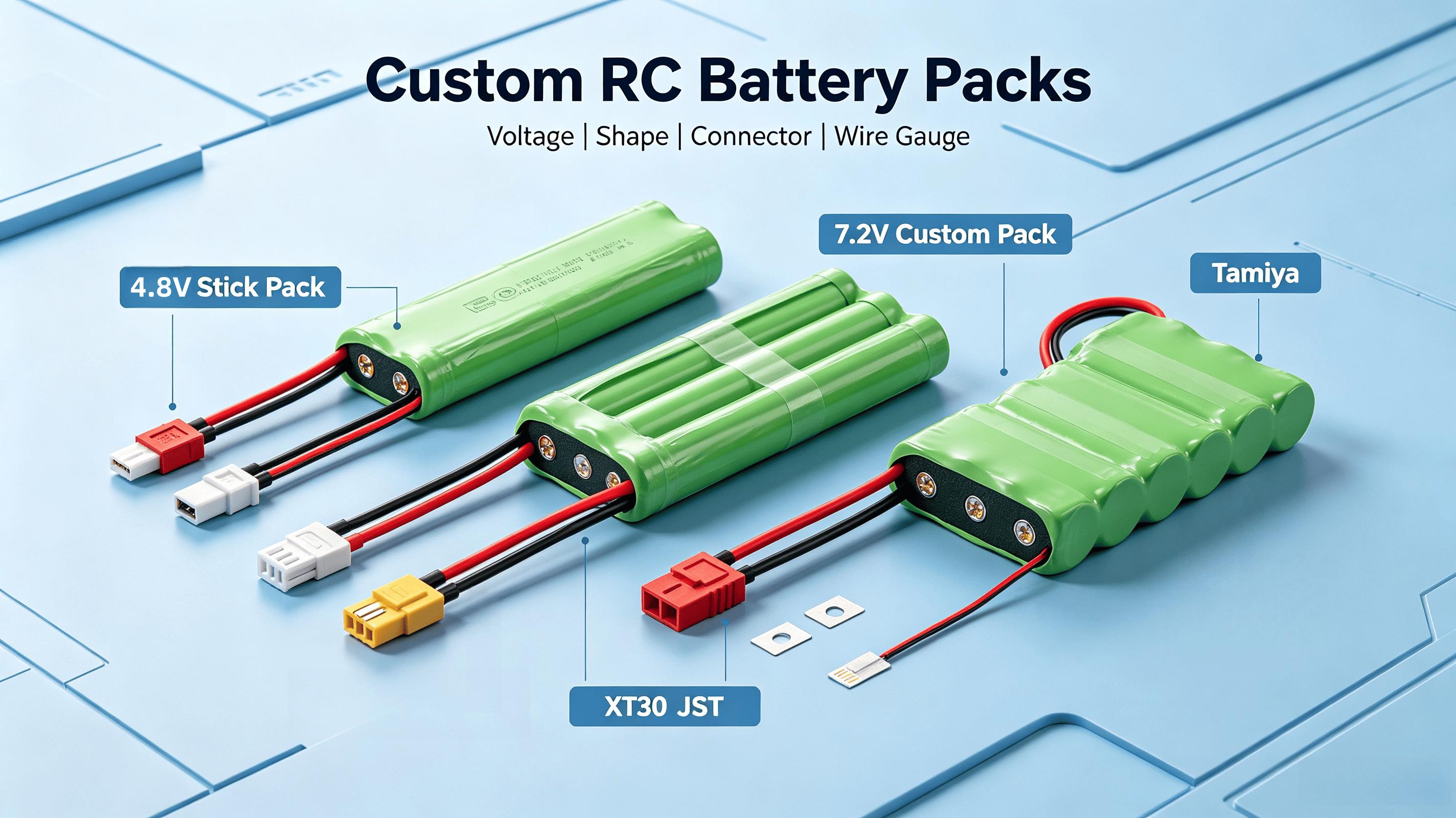

Custom RC Battery Pack Assembly Service

For modification brands and racing parts distributors, we offer full custom pack assembly based on this AAA 900mAh high-rate cell:

Voltage configurations: 2.4V (2S), 3.6V (3S), 4.8V (4S), 7.2V (6S) and other custom series/parallel combinations
Pack shapes: Straight stick pack, side-by-side flat pack, L-shaped or custom layouts to fit specific chassis battery compartments
Connector options: Tamiya, XT30, JST, bare leads, or custom solder tabs per your drawing
Wire options: UL-certified silicone wire, customizable length and gauge based on current requirements
Branding: Custom printed heat shrink with your logo, model number and electrical specifications

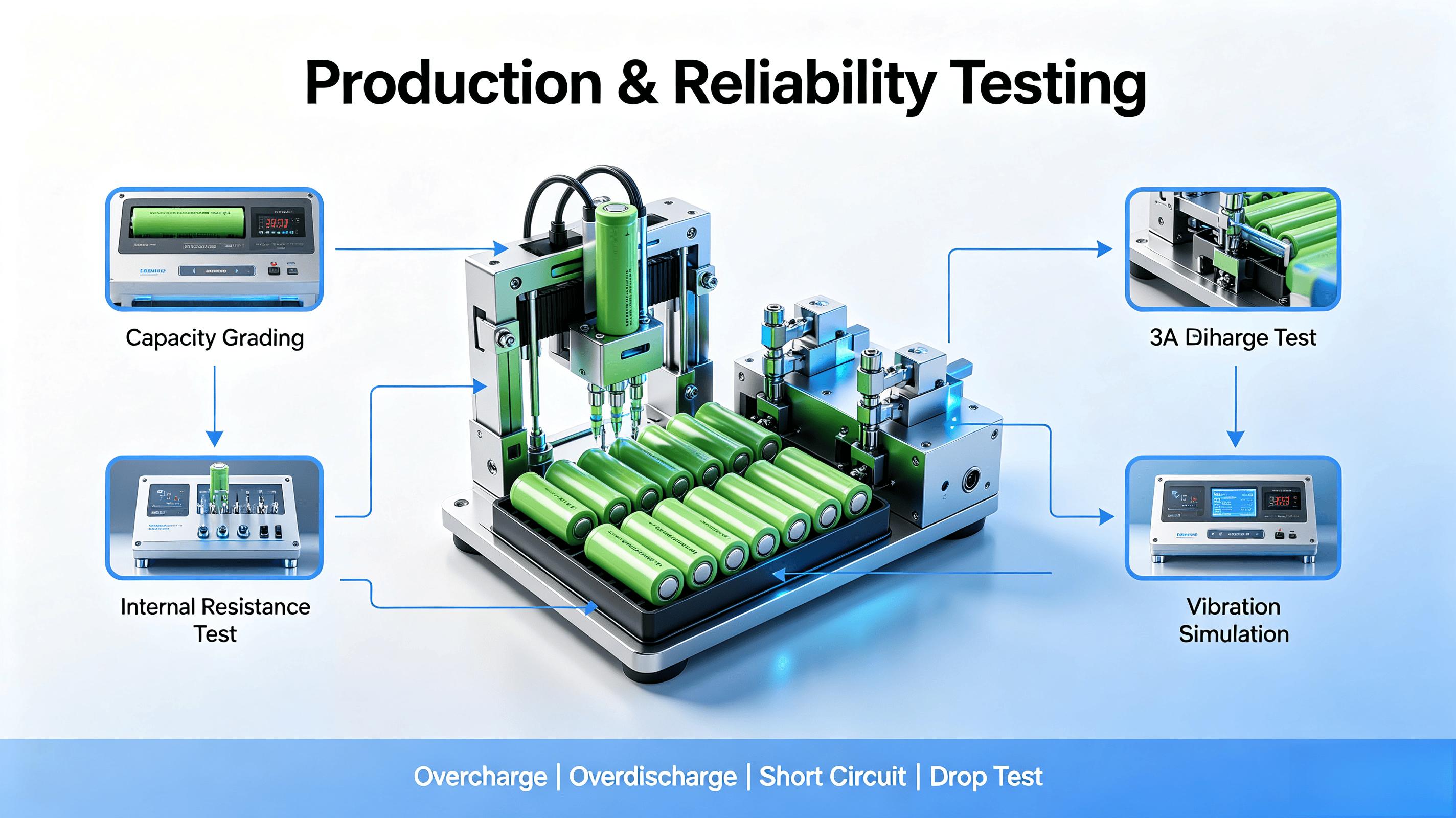

Production & Reliability Testing

Reliability Testing Standards (per IEC61951-2):
All assembled packs pass full charge-discharge cycling at 3A rate before shipment. We also perform validation tests including overcharge protection, overdischarge recovery, short circuit protection, vibration (1.5mm amplitude, 3000CPM) and 50cm drop test to ensure packs survive real racing conditions. No leakage, no explosion, no sudden power failure under rated operating conditions.

Order & Warranty Information

MOQ for bare cells: flexible for sample and trial orders, standard packaging in shrink-wrapped trays
MOQ for custom printed packs: contact sales for details based on complexity
Warranty: 1 year limited warranty against manufacturing defects in materials and workmanship
Lead time: standard cells ship within 3-5 working days, custom packs 10-15 working days
Shipping: supports sea freight, air freight and express delivery, with full UN38.3 documentation for safe transport

Request Datasheet, Sample or Custom Pack Quote

If you are sourcing high-rate NiMH cells for RC racing products or modification parts, send us your required pack voltage, connector type, estimated quantity and branding requirements. Our technical sales team will reply with detailed specs, test report and factory pricing within 24 working hours.
